Bi-Fold Soft-Close Sliding Hanging Roller System (Rail Included)
Bi-Fold Soft-Close Sliding Hanging Roller System (Rail Included)

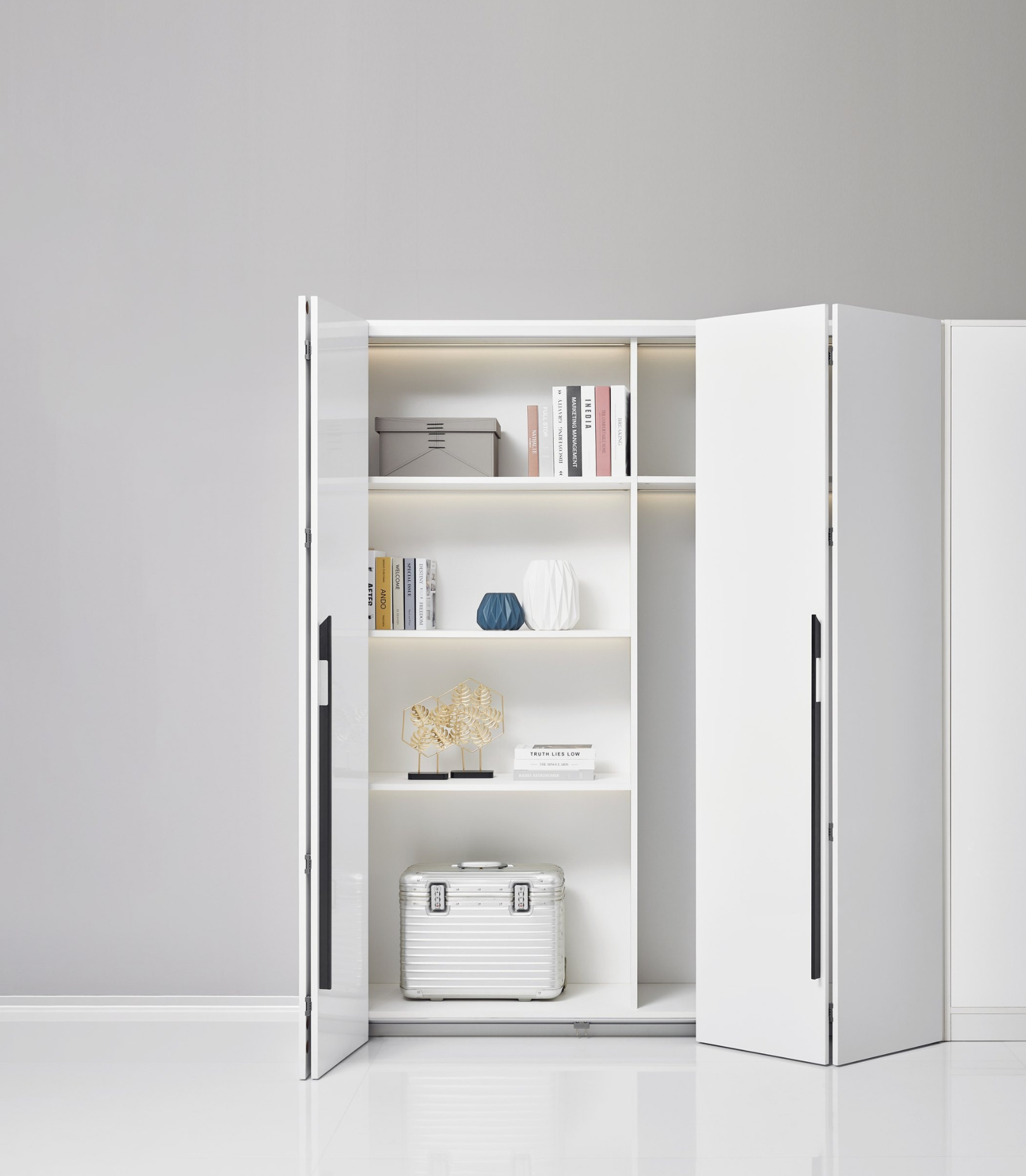

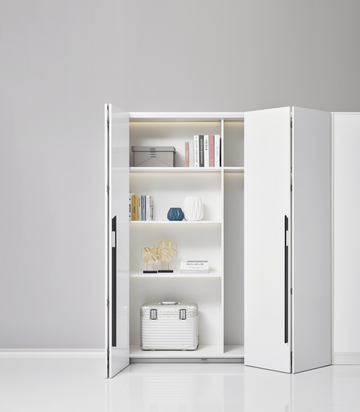

Discover Seamless Functionality with Our Advanced Cabinet Folding Door System
Revolutionize your cabinet experience with our innovative folding door system, designed for effortless operation, optimal space utilization, and superior performance.
Smart Design for Easy Installation and Smooth Performance

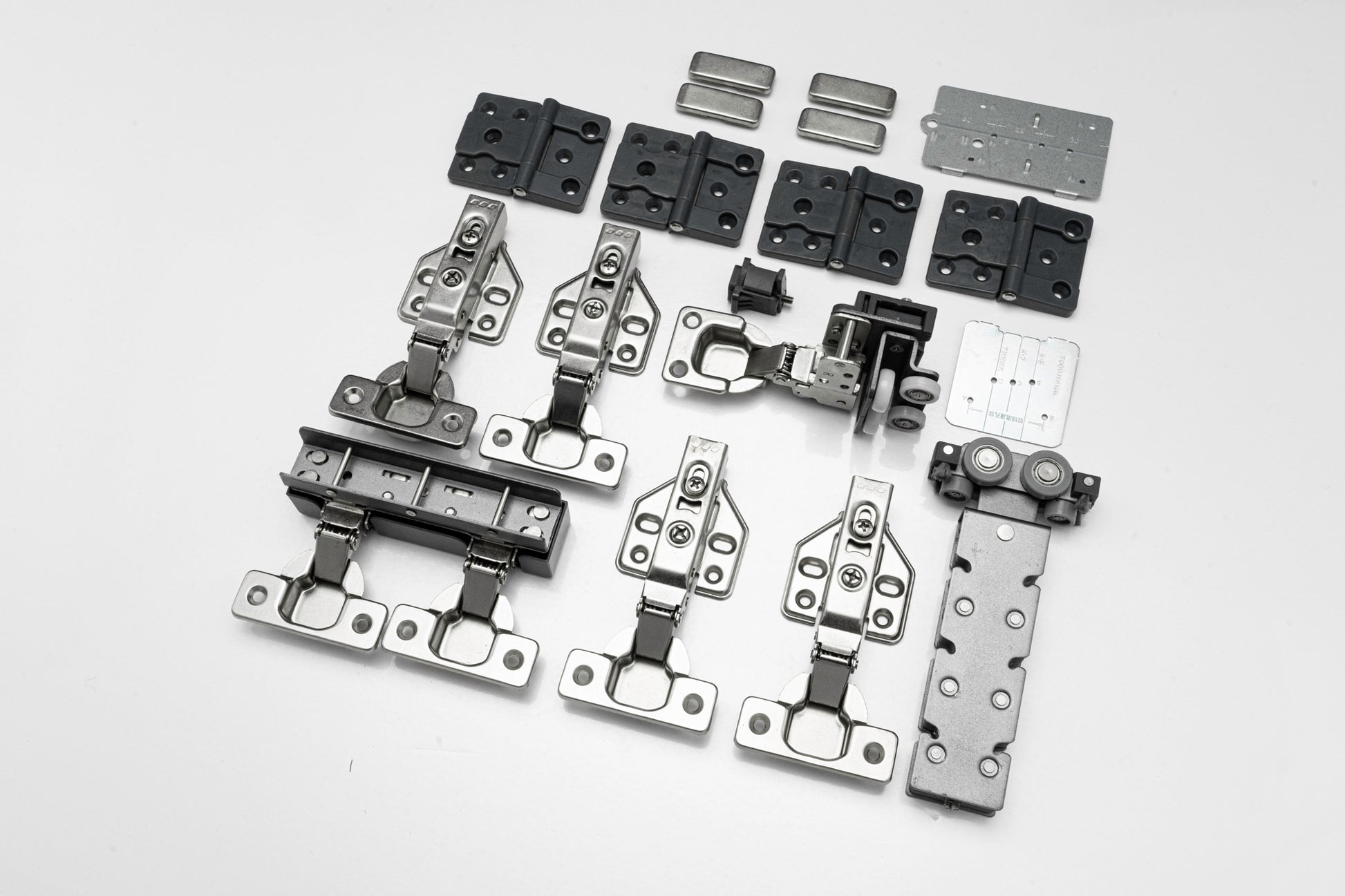

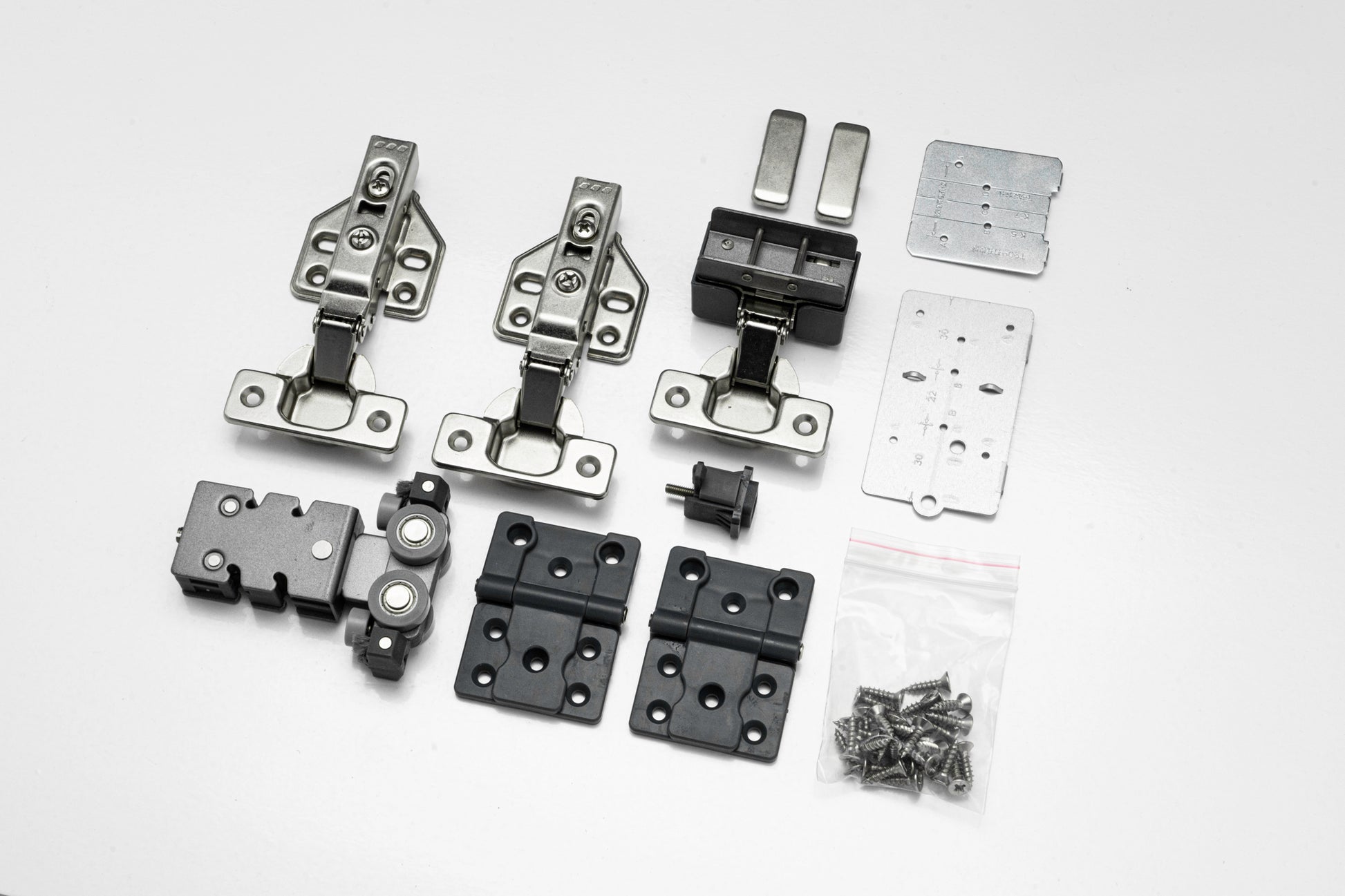

Our system features a convenient Clip on with adjustment mechanism, ensuring a straightforward and secure installation. Forget about complicated left or right distinctions – there's no distinguish for left and right accessories, making setup incredibly easy. Experience truly refined movement with smooth and silent performance, enhancing the tranquility of your living space. A built-in brush device for cleaning the dust on rail ensures consistent, long-lasting performance.
Maximized Space and Collision-Free Operation
Designed with efficiency in mind, this system offers excellent space after folding, with a remarkable distance between doors of ≤115mm. It requires only 30mm reserve space for the median division board inside the cabinet, freeing up valuable interior room. Enjoy a flawless aesthetic with a minimum gap of 2mm after door closing. Crucially, there is no collision between door and side panel when the door is opened, ensuring smooth operation and preventing damage.
Specifications
| Model | MT909A | MT909B |
| Max Loading Capacity | 15kg per door panel | 25kg per door panel |
| Max Door Height | ≤1200mm / 47 1/4“ | ≤ 2600mm/ 102 1/4" |
| Max Door Panel Width | ≤ 500mm/ 19 5/8” | ≤ 600mm/ 23 5/8“ |
| Door Thickness | 18–25mm | 18–25mm |
| Folding Performance | Distance between doors ≤ 115mm | Distance between doors ≤ 115mm; folded angle ≤ 15° |
