HK Lifting System Soft-Close
Product Description

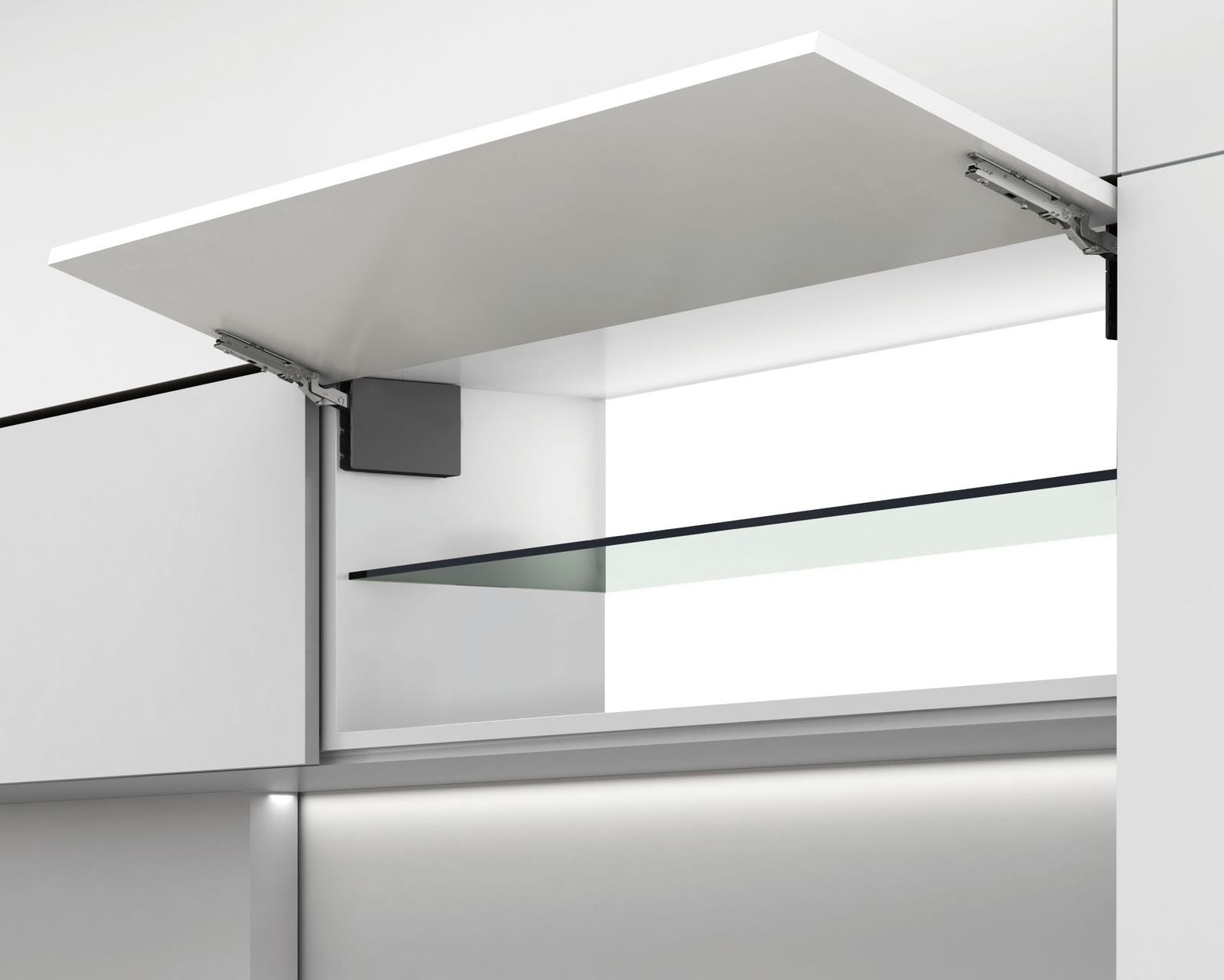

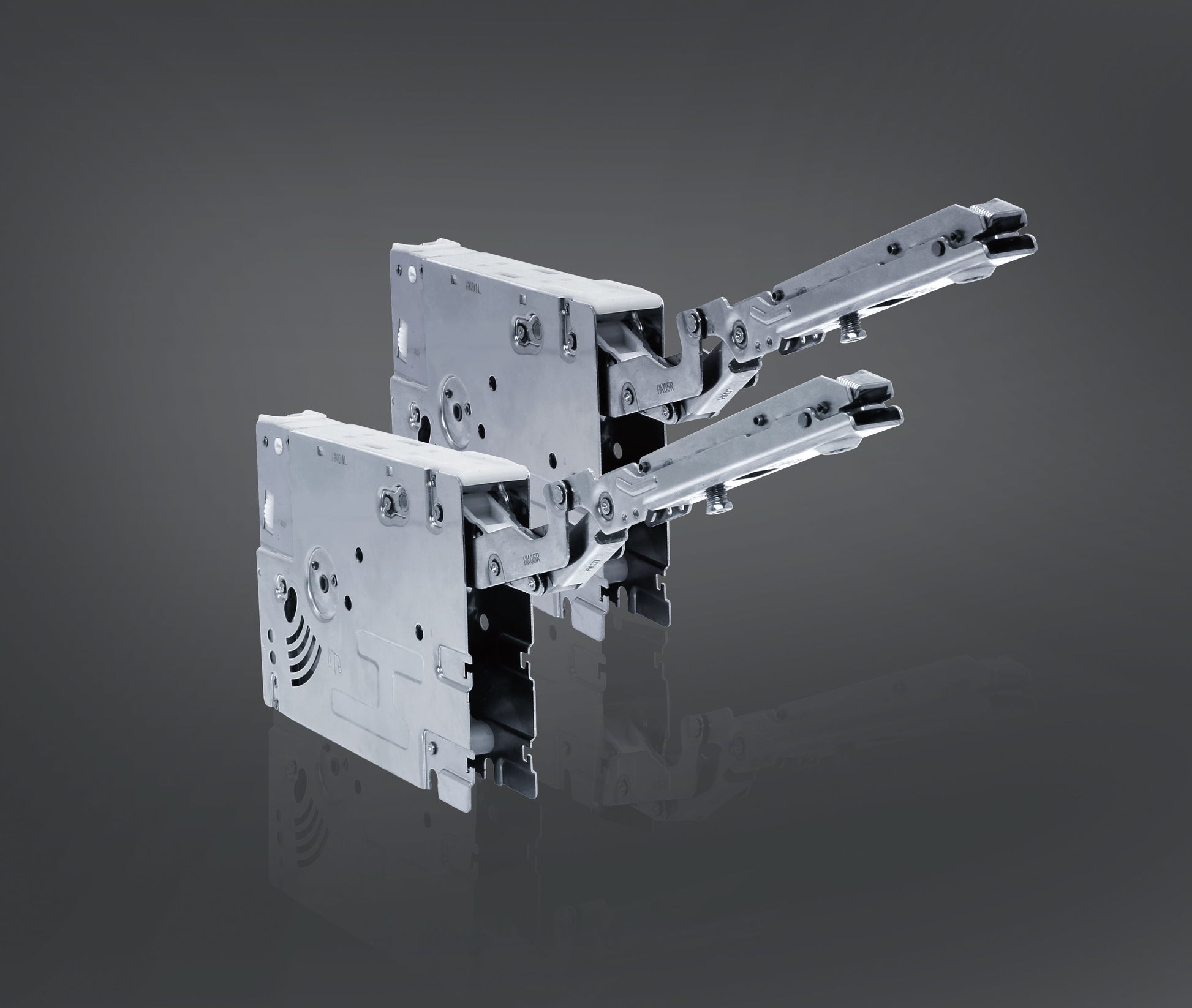

Master Your Space: Introducing the HK Flip-Up System
Revolutionize your overhead cabinetry with the HK Flip-Up System. This innovative solution combines robust support with intelligent, effortless operation, ensuring smooth access and controlled movement for large cabinet doors.
🧠 Smart Control & Effortless Access
The HK system is engineered for convenience, allowing you to easily manage tall cabinet doors without strain.
- Intelligent Hover Function: Once the door panel reaches an angle of 52° ± 7° or more, the system engages, allowing the door to stop and hover securely at any desired position. Say goodbye to holding heavy doors open!
- Gentle Operation: Featuring a double buffering function, the door opens and closes gently and silently, preventing slamming and ensuring safe, smooth movement every time.
- Automatic Start: The door plate automatically initiates the support sequence at 40° ± 15° upon opening
| Specification | Detail |
| Key Function | Stops at any angle once opened past 52° ± 7° |
| Door Height Range | 250 - 650 mm |
| Cabinet Width | Up to 1200 mm |
| Minimum Cabinet Depth | 200 mm |
| Adjustment | Three-dimensional panel position adjustment for perfect alignment. |
| Installation | Tool-free assembly for quick and easy setup. |
| Note on Selection | If two models' support torque ranges overlap, always select the model with the larger support torque for stability. |
Upgrade to the HK Flip-Up System for high-quality, controlled, and silent access to your overhead storage.
| Model | Door Weight | Door Height | |||
| HK1000 | 2～5kg |
250-450mm 9 7/8" - 17 3/4" |
|||
| HK2000 | 2.8～7kg |
300-650mm 11 7/8" - 25 5/8" |
|||
| HK3000 | 4.5~10kg |
350-650mm 13 3/4" - 25 5/8" |
|||
