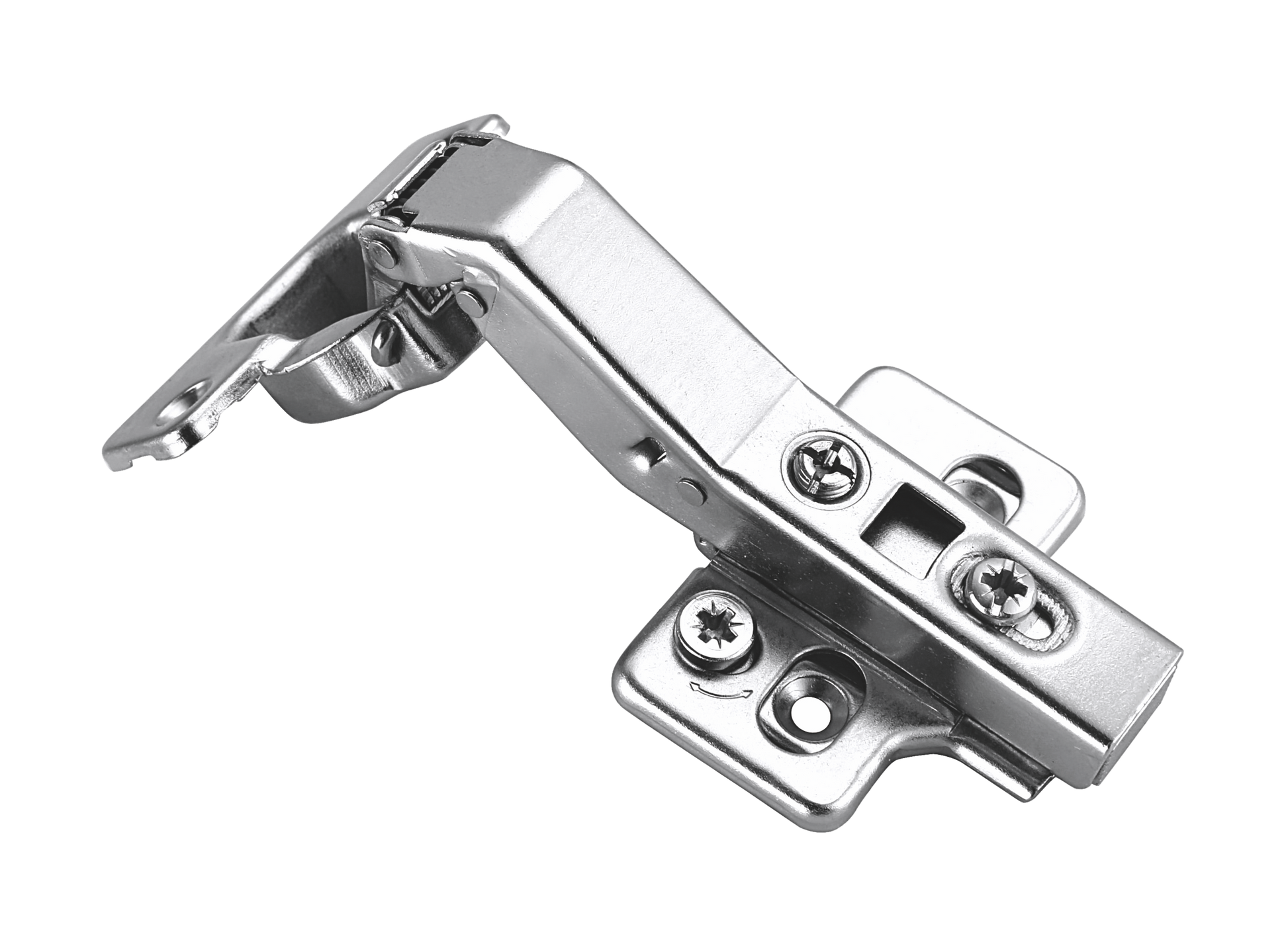

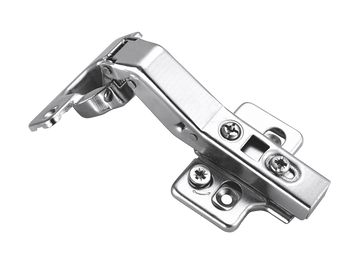

+45 Degree Clip on Soft-Close Hinge with Screw-On Plate (CC:48mm)

Specialty Connection: The Positive 45 Degree Hinge (A35HD)

Achieve precise door alignment for obtuse-angled cabinet designs with the Positive 45 Degree Clip on Soft-Closing Hinge, engineered for specialized corner or end-of-run applications.

Performance Engineered for Specialized Cabinets

This hinge is built from durable Cold Rolled Steel, providing robust stability required for custom cabinet structures.

• Application Scenarios: Essential for specialized Diamond Cabinets and other angled cabinet designs where the door meets the cabinet face at a 45-degree angle. It is perfect for breaking up straight runs or connecting units at an obtuse angle.

• Specialty Opening Angle: Designed for cabinet construction where the door opens at a 45° angle.

• Soft Close System: Features an integrated damping mechanism to guarantee the door closes silently and smoothly every time, preventing slamming.

• Quick Installation: Designed with a Clip On mechanism for fast, tool-free mounting and removal of the door from the plate.

Precision Alignment & Specification

The hinge uses standard components and features full 3D adjustment for perfect door alignment.

• Cup Diameter: Standard 35 mm cup diameter.

• Hole Distance: Features a critical cup hole distance of 48 mm.

• Adjustment: Includes 3D adjustment capability for precise vertical, horizontal, and depth alignment of the door face.

• Specification: This model is a Positive 45 Degree hinge, essential for custom cabinetry design requiring a specialized opening angle.
